V6000 series three-way control valve

In the heating field, the three-way control valve V6000 is a common fluid control component. This control valve can replace two two-way regulating valves to achieve temperature and flow control. They are categorized into mixing and diverting types based on their operation. Common issues with three-way control valves include challenges with seat disassembly and replacement, wear and leakage of the sealing material, poor adjustment precision, valve stems prone to breakage and falling off, and substantial leakage. These issues fail to satisfy operational needs and in severe cases, can lead to emergency shutdowns, causing substantial losses to users.

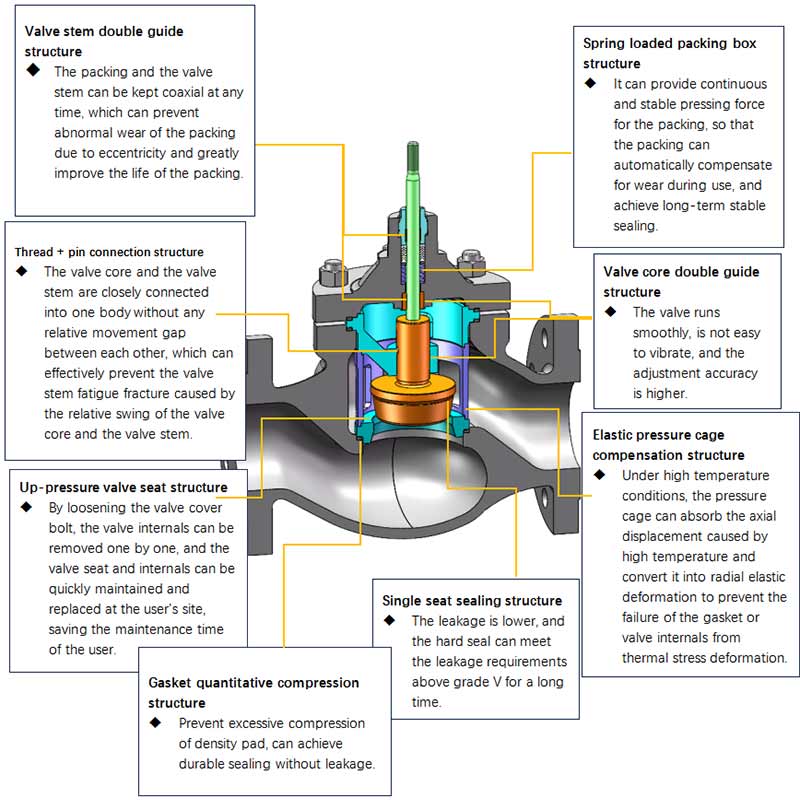

In response to these potential hazards, the Newton research and development team visited user sites, gathered extensive operational data, addressed technical challenges, and utilized a wealth of experimental testing for verification. The V6000 series of three-way control valves they designed, manufactured, and delivered in volume fully meet user requirements. The V6000 series control valves feature the following:

• High regulation precision, low leakage.
• Long lifespan of the sealing material.
• Convenient and speedy on-site maintenance.
• Fast response speed.
• Option for bellows seal to achieve zero external leakage.
• Capable of long, maintenance-free periods during online operation.
• Depending on the site's energy configuration, it can be fitted with a pneumatic diaphragm actuator or an electric actuator.
