SFT10 Ball Float Steam Trap

E-mail

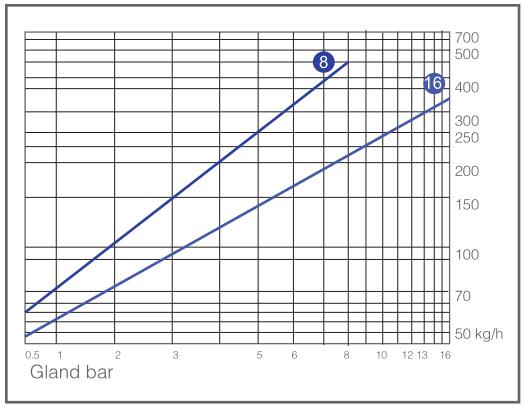

SFT10 Displacement Curve

Applications
1. The steam transmission pipeline guide.
2. Small heat exchanger and kettle.
3. Heat tracing system (high back pressure recovery system)
4. The coil is heated by air.

Material

Cap	A105
Valve Body	WCB
Seat	Stainless Steel
Disc	Stainless Steel
Other Internals	Stainless Steel

Data Size Table

Type	Conn	DN	PN	Working Pressure MPa	Temperature°C Pressure MPa	Diameter (mm)				U.W Kg
Type	Conn	DN	PN	Working Pressure MPa	Temperature°C Pressure MPa	L	H	H1	W	U.W Kg
SFT 10T	Thread	15-25	25	0.05-1.6	400/1.57	150	120	60	170	5.5
SFT 10W	SW	15-25	25	0.05-1.6	400/1.57	150	120	60	170	5.5
SFT 10F	RF	15-25	25	0.05-1.6	400/1.57	210	120	60	170	8

Structural features
1. The working principle of the lever float steam trap is based on the density of vapor and liquid.
2. The valve body and bonnet are made of cast steel/forged steel.
3. All internal parts are made of stainless steel,and the wear allowance has been fully considered in the design of movable parts, which improves the service life of the trap.
4. Special flow channel design to achieve zero water hammer.
5. Patented flexible closing system and micron-level precision closing system double guarantee no steam leakage and long service life.
6. Built-in air exhaust valve to prevent steam lock.
7. The independent filter makes the trap work in a clean environment.
8. Choose different displacement curves according to the pressure.
9. The back pressure rate is as high as 95%
10. The drain plug is designed at the bottom of the trap to ensure that the internal water is removed after stopping,to prevented floating ball from freezing in cold weather.
